Understanding Intel Optane Hybrid Technology

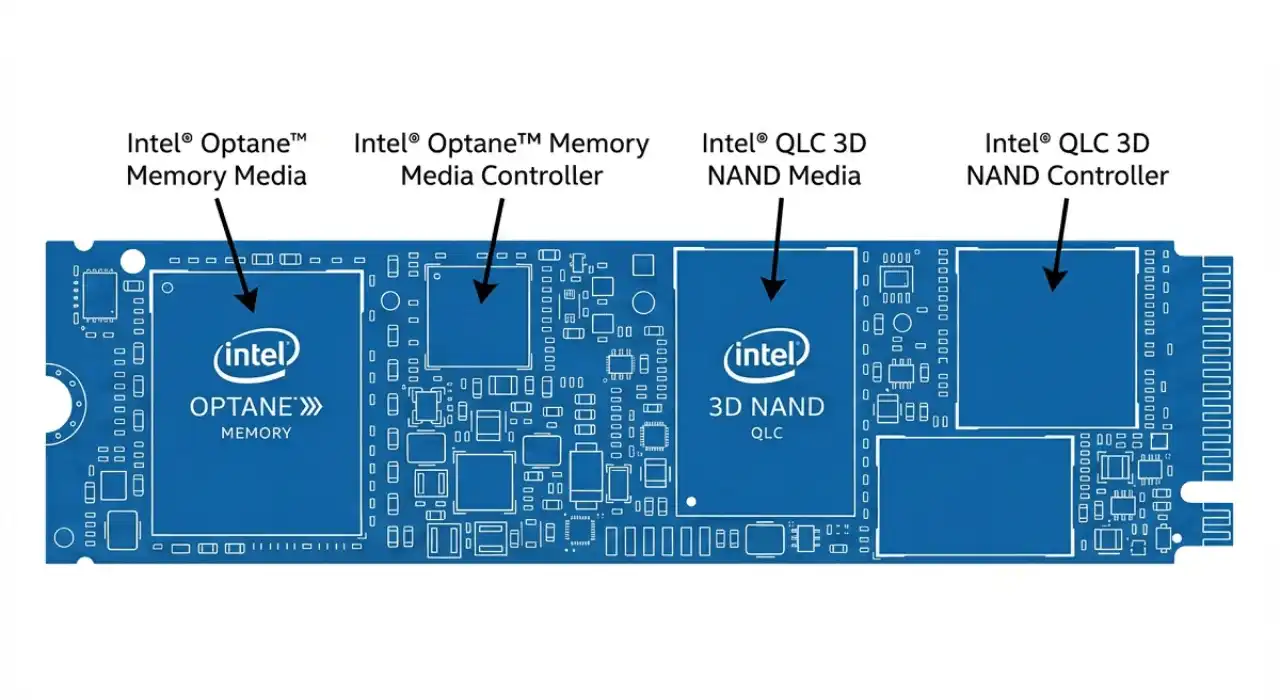

To understand why standard recovery attempts fail, it is important to understand how the drive is built. Intel Optane H10 and H20 drives are not standard SSDs. They are two distinct devices mounted on a single circuit board:
- Optane Memory: A high-speed cache that accelerates system performance.
- NAND Storage: The primary chip where your documents and operating system reside.
These two components function as a single unit through a complex digital “handshake.” If this synchronization breaks, the drive becomes unreadable to standard computers, even though your files are still physically safe on the storage chip.

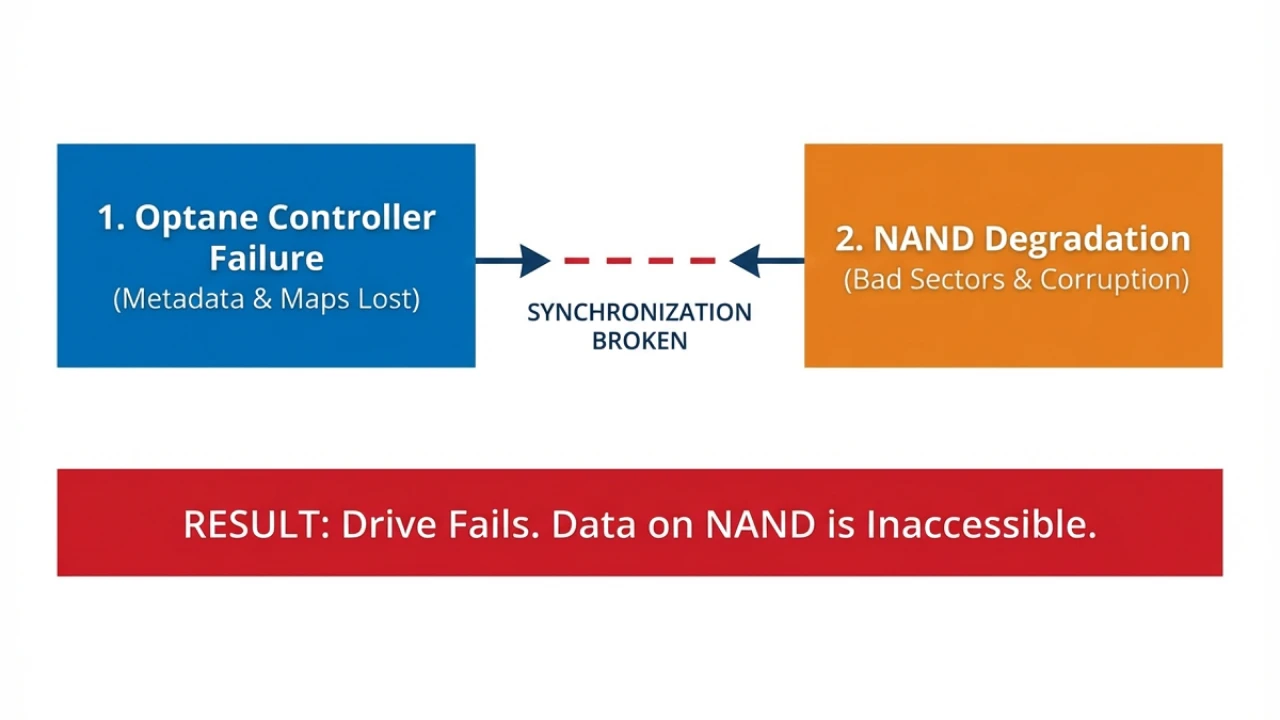

Primary Causes of Intel Optane Failure
Because these drives rely on two different storage technologies, they have two distinct points of failure. Data loss typically occurs when one of these two internal components malfunctions:
- Optane Controller Failure: If the Optane side of the module fails, the metadata and file system maps are lost. Without these maps, the data on the other half of the drive becomes an unreadable puzzle.
- NAND Degradation: The storage side of the drive uses QLC NAND chips, which can degrade over time. As these chips wear down, they develop bad sectors that prevent the drive from booting or allow files to become corrupted.
While many recovery labs decline these cases due to their logical complexity, we specialize in handling these highly technical failures and severely degraded NAND chips.
Identifying Intel Optane Failure Symptoms
These hybrid drives tend to fail in very specific ways. If your system presents the following behaviors, the data is likely recoverable:
File System Errors
The drive is visible in Disk Management but is listed as "RAW," "Unallocated," or asks to be formatted.
Boot Failures
The laptop powers on but displays a "No Bootable Device Found" error message.
Driver Warnings
Frequent Blue Screen (BSOD) crashes referencing "IaStorAC.sys" or Intel Rapid Storage Technology errors.
Incorrect Capacity
The drive appears to be much smaller than its actual size (for example, a 512GB drive showing as only 32GB).
How We Handle Complex Intel Optane Failures
We do not rely on generic scanning software. Instead, we use a targeted, hardware-based approach to rebuild the connection between the two storage layers.
Diagnostics & Isolation
We inspect the drive to determine if the fault lies within the Optane controller, the storage controller, or the NAND chips.
Component Imaging
Using specialized adapters, we create forensic images of the Optane memory and the NAND storage independently. This ensures we never stress or modify your original hardware
Logical Reconstruction
Our engineers apply custom emulation algorithms to virtually “stitch” the file system map back together using the data from both chips.
Data Extraction
Once the folder structure is visible, we verify the file integrity and transfer your data to a standard, reliable external drive.
We are capable of managing the most complex Intel Optane cases, including drives with firmware corruption or significant physical degradation.
Supported Intel Optane Hardware
We support recovery for the full generation of Intel Hybrid storage modules manufactured between 2018 and 2022:

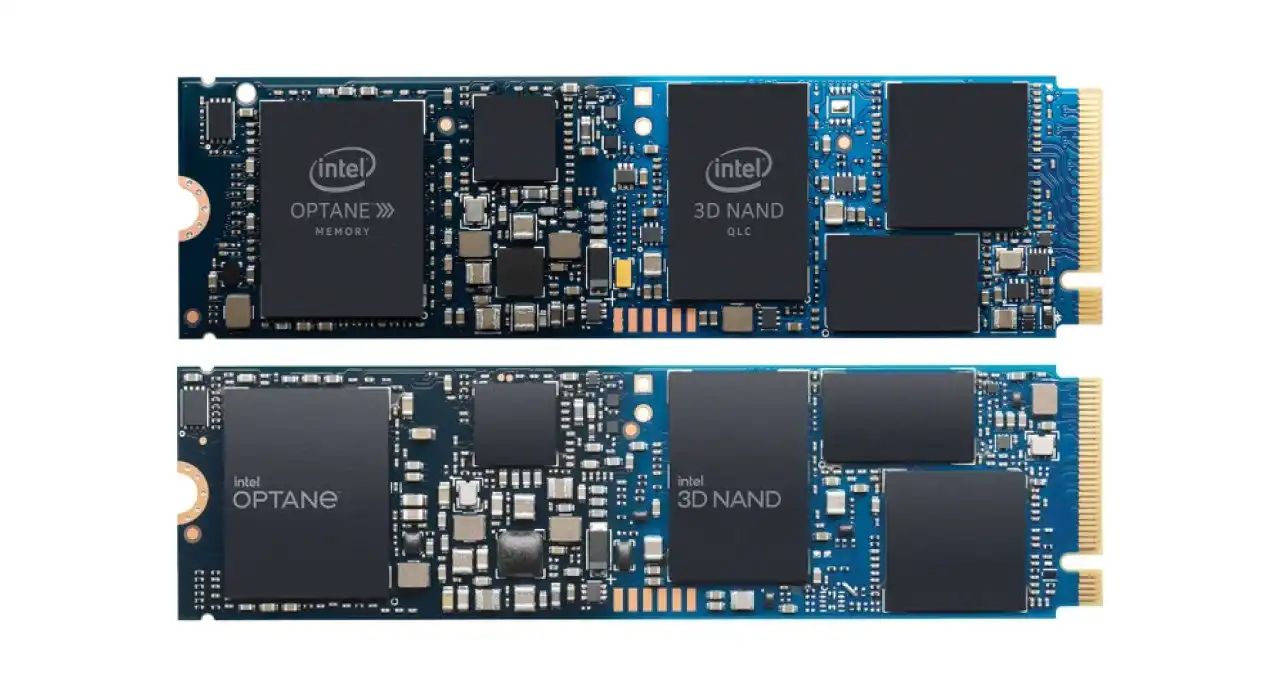

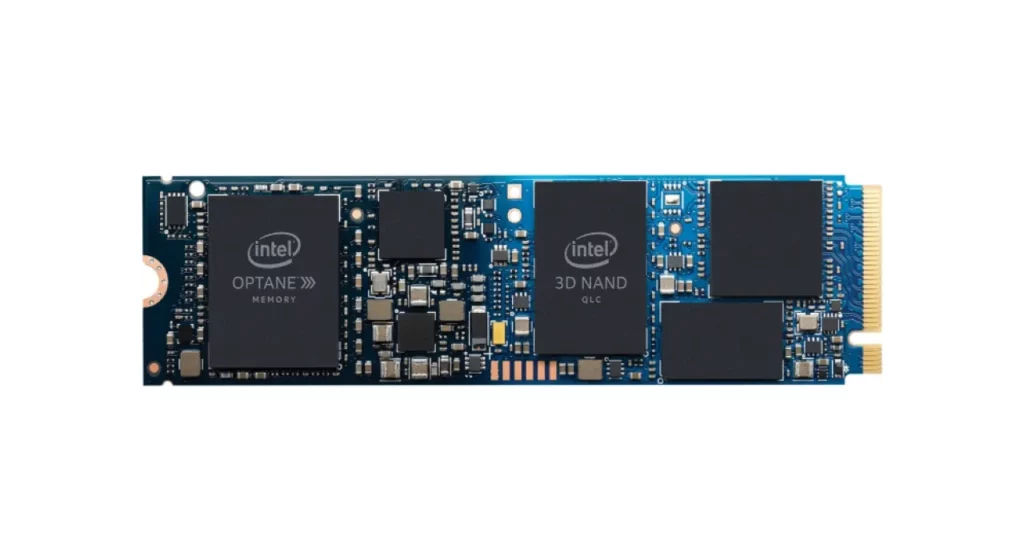

Intel Optane H10 Series: (16GB + 256GB), (32GB + 512GB), (32GB + 1TB)
Intel Optane H20 Series: (32GB + 512GB), (32GB + 1TB)
