Successful Data Recovery from a WD Elements 2TB External Hard Drive

Article by:
October 15, 2024
5 min read

Overview

WD Elements external hard drives are widely used for their large storage capacity, affordability, and reliability. However, like any storage device, they are not immune to failure. Whether due to physical damage, firmware issues, or user-side errors, losing access to valuable files can be frustrating and costly.

In this post, we detail a recent external hard drive recovery case involving a failed 2TB WD Elements external hard drive, which included additional complexity due to WD Security-based hardware encryption. We’ll walk you through the challenges, the recovery steps we performed, and how you can prevent data loss in the future.

The Situation: WD Elements Drive Suddenly Becomes Unresponsive

A client contacted us after their WD Elements drive stopped responding entirely. The drive contained important business documents, personal photos, and video files. When plugged into a computer, the device was not recognized, and no access to the contents was possible.

The client had also used WD Security software to enable hardware encryption, believing it would provide extra protection for their data. While encryption is valuable for security, it complicates data recovery significantly especially when the drive becomes physically or logically damaged.

Initial Diagnosis

Once the drive arrived at our lab, our engineering team conducted a full diagnostic assessment to determine the extent of the damage. Potential causes we considered included:

  • Physical impact or mechanical shock
  • USB port or cable failure
  • File system corruption from an improper disconnect
  • Read/write head damage
  • Firmware or PCB controller issues

Our diagnosis confirmed a mechanical failure of the read/write heads, file system corruption, and an active hardware encryption layer controlled by WD Security software.

Why Hardware Encryption Complicates Recovery

WD Elements drives protected with WD Security are hardware-encrypted by default when a password is set. This means:

  • The data stored on the platters is encrypted at the hardware level
  • Even if the raw sectors are recovered, the contents remain unreadable without proper decryption
  • Any controller swap or firmware modification requires exact reinitialization of the encryption environment
  • If the drive is mechanically damaged, recovery becomes doubly difficult because both physical repair and encryption bypass are required

While encryption is excellent for protecting sensitive information, it creates substantial barriers for data recovery. For engineers, it’s like solving two problems at once restoring physical access and unlocking the encryption in parallel.

Get a Free Consultation.

Our recovery experts are ready to assess your device and guide you through the safest path to recovery. Fill out the form to get started.

"*" indicates required fields

This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Our Recovery Process

Despite these complications, our team developed a structured plan to recover the client’s data:

1. Cleanroom Repair

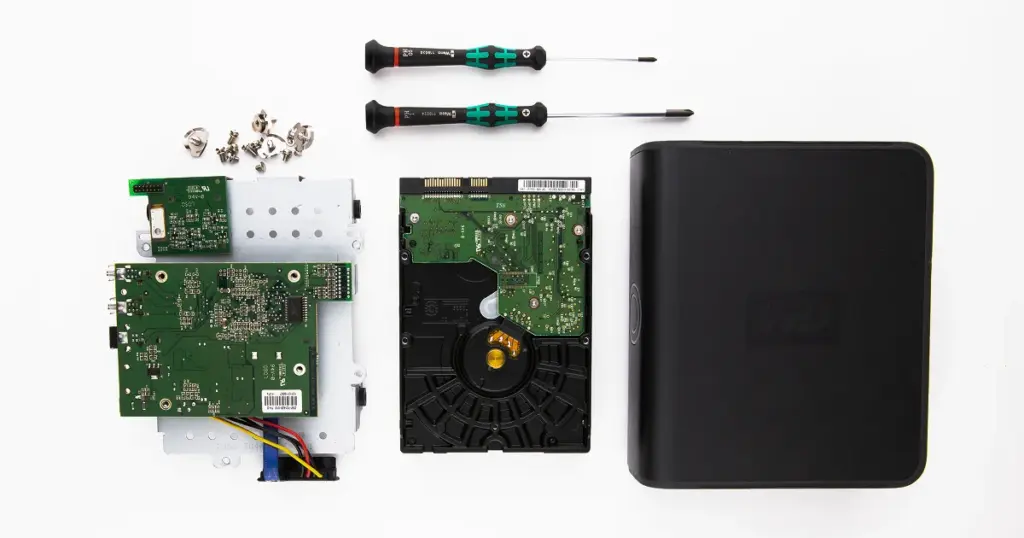

We disassembled the drive in our ISO Class 10 cleanroom and identified the failed read/write head assembly. Using precision tools, we carefully replaced the damaged components with matching parts sourced from a donor drive.

2. Sector Imaging

Once mechanical access was restored, we used hardware-based forensic imaging tools capable of reading encrypted sectors without altering them. This allowed us to safely capture a bit-for-bit clone of the drive, preserving the encrypted state for further analysis.

3. Encryption Handling

Using the password provided by the client, we rebuilt the original encryption environment using proprietary WD firmware emulation tools. This step was critical to unlocking the imaged data and allowing further file-level analysis.

4. File System Reconstruction

After decryption, we scanned the drive image for directory structures and recovered files. Corruption in the file system was repaired using advanced utilities, allowing us to reconstruct folders, recover file metadata, and restore usability.

5. Data Verification and Delivery

Once recovery was complete, we performed integrity checks and file validation with the client’s assistance. The recovered data was securely transferred to a new external drive.

Results

Despite the double challenge of hardware-level damage and encryption, our engineers successfully completed a WD external hard drive recovery, retrieving over 95% of the client’s data, including:

  • Financial documents
  • Client project files
  • Family photos and personal videos

The client was relieved and impressed by the outcome especially after being told by others that recovery from an encrypted and failed drive was impossible.

Your Data Security Is Our Priority

Data privacy isn’t optional. It’s our commitment. Our secure recovery process ensures your sensitive information stays protected from start to finish.

Trust in certified security. Start your recovery today! Call Now: 888.611.0737

Tips to Avoid Future Data Loss

If you’re using an external drive like a WD Elements, follow these best practices:

Eject Safely
Always use the “Safely Remove Hardware” function before unplugging.

Back Up Frequently
Don’t rely on one device alone. Use a second external drive or secure cloud storage.

Be Mindful of Encryption
While encryption adds security, make sure to keep your password safe and understand that recovery is significantly harder if the drive fails physically.

Protect from Physical Damage
Keep your external drive in a padded case and avoid moving it while it’s powered on.

Monitor Drive Health
Use tools to monitor SMART data and drive temperature for early warning signs.

Conclusion

Hardware encryption is a valuable security tool, but it also introduces significant complexity when data recovery is needed. In this case, thanks to our cleanroom capabilities, firmware expertise, and encryption handling, PITS Data Recovery recovered critical files that others would have declared lost.

If you’re facing data loss on a WD Elements or other encrypted drive, don’t give up. Contact PITS Data Recovery for a professional evaluation. We specialize in recovering encrypted, damaged, and highly sensitive data from even the most challenging storage devices.

Don't Let Data Loss Ruin Your Business

Minimize business disruption. We retrieve lost data fast, so you can focus on what matters.
