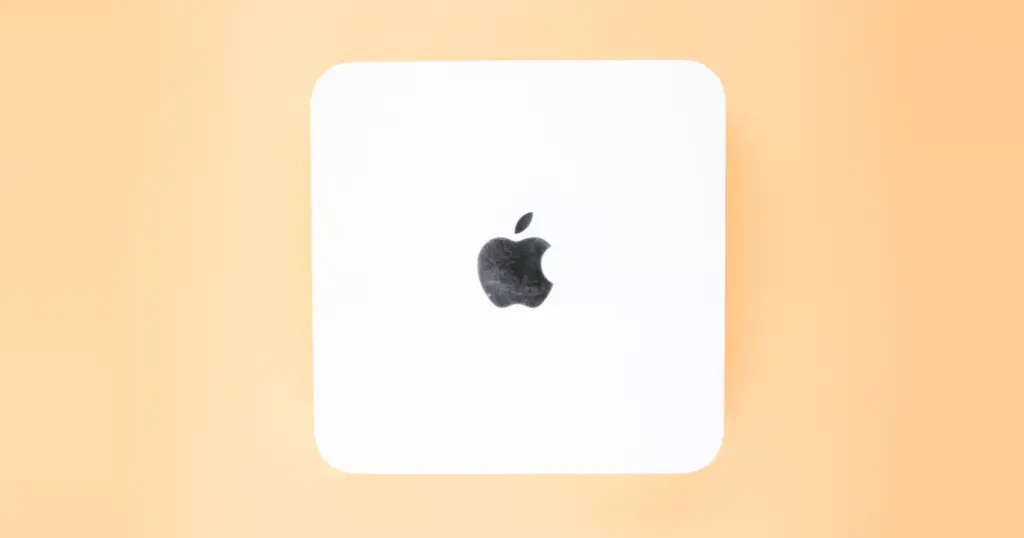

An Apple Time Capsule can hold years of family photos, videos, and Time Machine backups. When the device fails, the problem may not be limited to the Apple system or network access. The internal hard drive may have a mechanical fault that blocks recovery through normal methods.
This case study explains how PITS Data Recovery recovered data from a failed Apple Time Capsule with a 2TB internal WD hard drive. The recovery required cleanroom hard drive work, full binary imaging, and Apple sparsebundle backup reconstruction.
Customer Situation
The customer owned an Apple Time Capsule that stored valuable family photos and videos. When the device failed, they could no longer retrieve the files or access the backups stored on the internal 2TB WD hard drive.
Before contacting PITS, the customer tried to recover the data and later took the device to a local repair shop. The shop could not retrieve the files, leaving the customer without access to important family media and Time Machine backup data.
At that point, continued use created additional risk. If the internal hard drive had a mechanical failure, repeated power-on attempts could worsen the drive condition and reduce recovery options.
Read more about Apple Time Capsule data recovery.
Don't Let Data Loss Ruin Your Business
Minimize business disruption. We retrieve lost data fast, so you can focus on what matters.
Technical Diagnosis: Failed Read/Write Head
PITS received the sealed Time Capsule for lab evaluation. Engineers opened the device in a controlled environment and removed the internal 2TB WD hard drive for direct testing.
The drive initialized, which meant it still showed signs of activity. However, diagnostics confirmed a failed read/write head. That mechanical failure prevented the drive from reading data reliably, even though the device was not completely dead.
A failed head can damage access to specific disk surfaces and create instability during reads. For that reason, the recovery had to be handled through controlled imaging before deeper repair work continued.
What Not to Do After a Time Capsule Failure
A failed Time Capsule should not be repeatedly powered on or forced to reconnect. If the internal hard drive has a head failure, continued attempts can increase surface damage and reduce the amount of readable data.
Avoid these actions:
- Do not keep restarting or reconnecting the Time Capsule
- Do not open the device outside a professional recovery process
- Do not run repair utilities on the original drive
- Do not attempt DIY head replacement
- Do not keep trying local repair options after a mechanical failure is suspected
If the device contains important backups, stop using it and request a professional evaluation. Learn more about professional Time Machine backup recovery.
Industry-Leading 99% Success Rate
No hidden fees. No surprises. Just expert data recovery you can trust. We handle everything from simple file loss to extreme data recovery cases. If we can’t recover your data, no one can.
Why Local Repair Could Not Recover the Data
A local repair shop may be able to handle device access issues, ports, power problems, or basic software troubleshooting. This case involved a mechanical hard drive failure inside the Time Capsule.
The read/write head failure required cleanroom handling and a controlled donor-head replacement. After the disk image was completed, the Apple sparsebundle Time Machine backup format also had to be mounted and rebuilt with specialized recovery tools.
This was not a standard file transfer or Apple device repair. It required hard drive recovery and Apple backup reconstruction in one workflow.
How PITS Recovered the Apple Time Capsule Data
Step 1: Sealed Device Intake and Lab Evaluation
PITS received the sealed Apple Time Capsule, opened it in a controlled lab environment, and removed the internal 2TB WD hard drive for direct diagnostics.
Step 2: Drive Initialization and Head Failure Diagnosis
Engineers confirmed that the drive initialized but could not read data reliably. Testing identified a failed read/write head as the main mechanical fault.
Step 3: Sector Cloning With Working Heads
The team first cloned all readable sectors using the working heads. This preserved stable data before any mechanical intervention was performed.
Step 4: Cleanroom Head Replacement and Final Imaging
PITS performed a cleanroom head replacement using a compatible donor part. After the replacement, engineers completed the remaining disk copy and obtained a full binary image of the drive.
Step 5: Sparsebundle Mounting and File Structure Recovery
Engineers used proprietary recovery software to handle the Apple sparsebundle Time Machine backup format. The legacy disk image was mounted, access to the file structure was rebuilt, and the customer’s photos and videos were recovered.
Recovery Results and Data Delivery
PITS obtained a full binary copy of the internal hard drive and restored all recoverable Time Machine backup files. The recovered data included the customer’s family photos and videos.
The restored files were saved to a new SanDisk external SSD and shipped back to the customer. This gave the customer usable access to the media that could not be recovered through the failed Time Capsule or local repair shop.
Emergency Data Recovery Services
Unexpected data loss? Whether it’s a crashed system, failed storage device, or accidental deletion, our 24/7 emergency recovery service ensures priority assistance to retrieve your critical data.
Why Professional Apple Recovery Mattered
This case required both mechanical hard drive recovery and Apple backup expertise. The failed read/write head had to be addressed before the Time Machine backup structure could be accessed.
PITS controlled the recovery process from cleanroom head replacement through binary imaging and sparsebundle reconstruction. That workflow protected the original drive and gave engineers a complete image to work from.
Read more about Apple data recovery services.
Final Takeaway: Protect Your Recovery Options
A failed Apple Time Capsule should be treated carefully, especially when it contains family photos, videos, or Time Machine backups. Repeated power-on attempts, DIY opening, or repair utilities can make a mechanical drive failure harder to recover.
If your Time Capsule has stopped working or your backups are inaccessible, stop using the device and start a professional evaluation. PITS Data Recovery can inspect the internal drive, identify the failure, and determine the safest path to recover your files.
